Product Description

10X Zoom Manual Lens Close up Camera with 1/2.8″ IMX298 UVC USB2.0 4K Video Webcam, with 9.8ft/3m Cable Plug and Play for Windows, Linux, Android

Specification

Model: IF-USB16MP01-MFV(5-50)

Sensor: CMOS IMX298

Sensor Size: 1/2.8inch, Pixel Size: 1.12um

Image area: 6.4mm x 5.3mm

Max. Resolution: 4656(H) X 3496(V) 16Megapixel

Compression format: MJPEG / YUY2（YUYV）, Min illumination: 0.5lux

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port type: USB2.0 High Speed

Free DriveProtocol: USB Video Class（UVC）

AEC: Support, AWB: Support, AGC: Support

Adjustableparameters:

Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

16 Megapixes USB Webcam High Resolution 5K Camera CS Mount 5-50mm Manual Varifocus Lens Close UP Camera for Jetson Nano OpenCV Windows Linux Laptop

Resolution & frame:

4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps

4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps

3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps

2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps

2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps

1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps

1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps

800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps

Lens Parameter: Standard 1.95mm lens ,optional other M12 Mount lens

Power supply: USB BUS POWER4P-2.0mm socket

Operating Voltage: DC5V, Working Current: 150mA~240mA

Working temperature: -10～70℃, Storage temperature: -20～85℃, Cable: Standard 3M

16MP USB Camera 3496P Ultra HD USB Webam Support Multi Software & System, Support Raspberry PI, Development Board, Jeston Nano, etc.

Detailed Features：

16MP High Resolution USB Webcam with CMOS IMX298 Sensor Manual Zoom USB Camera Free driver Plug and Play

1. High resolution 16MP USB Camera with IMX298 Sensor

2. Super high resolution 4656X 3496 high resolution

3. UVC free driver, USB2.0 Plug and Play

4. Standard with 3m cable

5. With CS Mount, 5-50mm 10X Varifocus Close up Lens

6. Support different operating systems, compatible with different softwares

Support Multi System & Software

-No driver required, plug and play

– Support Live Streaming Software, Skype, Zoom, Facetime, Youtube…

– Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2…

– Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…

16MP USB Camera High Resolution Webcam with CS Mount 10X 5-50mm Varifocus Lens Webcam UVC USB2.0 5K Video Lightburn Camera

Widely used in applications where high resolution images and videos with autofocus are required, such as industrial camera, video conferencing, live streaming, security, medical equipment, industrial inspection, scientific research and development, education and training, high resolution document scanning, high speed photography equipment, photo scanner ANPR camera, 3D printer, industrial machine vision, etc.

Add to Cart

Customer Reviews

3.4 out of 5 stars 6

4.1 out of 5 stars 24

4.4 out of 5 stars 9

3.6 out of 5 stars 23

4.1 out of 5 stars 28

3.9 out of 5 stars 11

Price

$168.99$168.99 $79.99$79.99 $139.99$139.99 $92.99$92.99 $75.99$75.99 $62.99$62.99

Max Resolution
4K/2160P 8Megapixel 2448P 48Megapixel 6000P 2Megapixel 1080P 2Megapixel 1080P 2Megapixel 1080P

Image Sensor
CMOS imx415 CMOS IMX179 S5KGM1ST04-FG9 CMOS OV4689 CMOS IMX323 CMOS IMX323

Lens
5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens 70 Degree No Distortion Lens 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6mm Lens Night Vision IR-Cut

Compression Format
MJPEG / YUY2(YUYV) / H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2/H.264 MJPEG/YUY2/H.264

Mini Illumination
0.2LUX 0.2LUX 0.3LUX 0.1LUX 0.01LUX 0.01LUX

Max Frame Rate
60fps 30fps 30fps 260fps 30fps 30fps

Plug and Play

✓

UVC Compliant

✓

Support OS
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

16MP High Definition Quality: 3496P high resolution usb camera incorporates a 1/2.8-inch IMX298 image sensor, ensuring sharp images and accurate color reproduction with a maximum resolution of 4656 x 3496. 9.8ft/3m cable offers convenient connectivity to laptops, PCs, Raspberry Pi and Jetson devices. It’s a fantastic choice for industrial applications and offers exceptional performance and versatility.

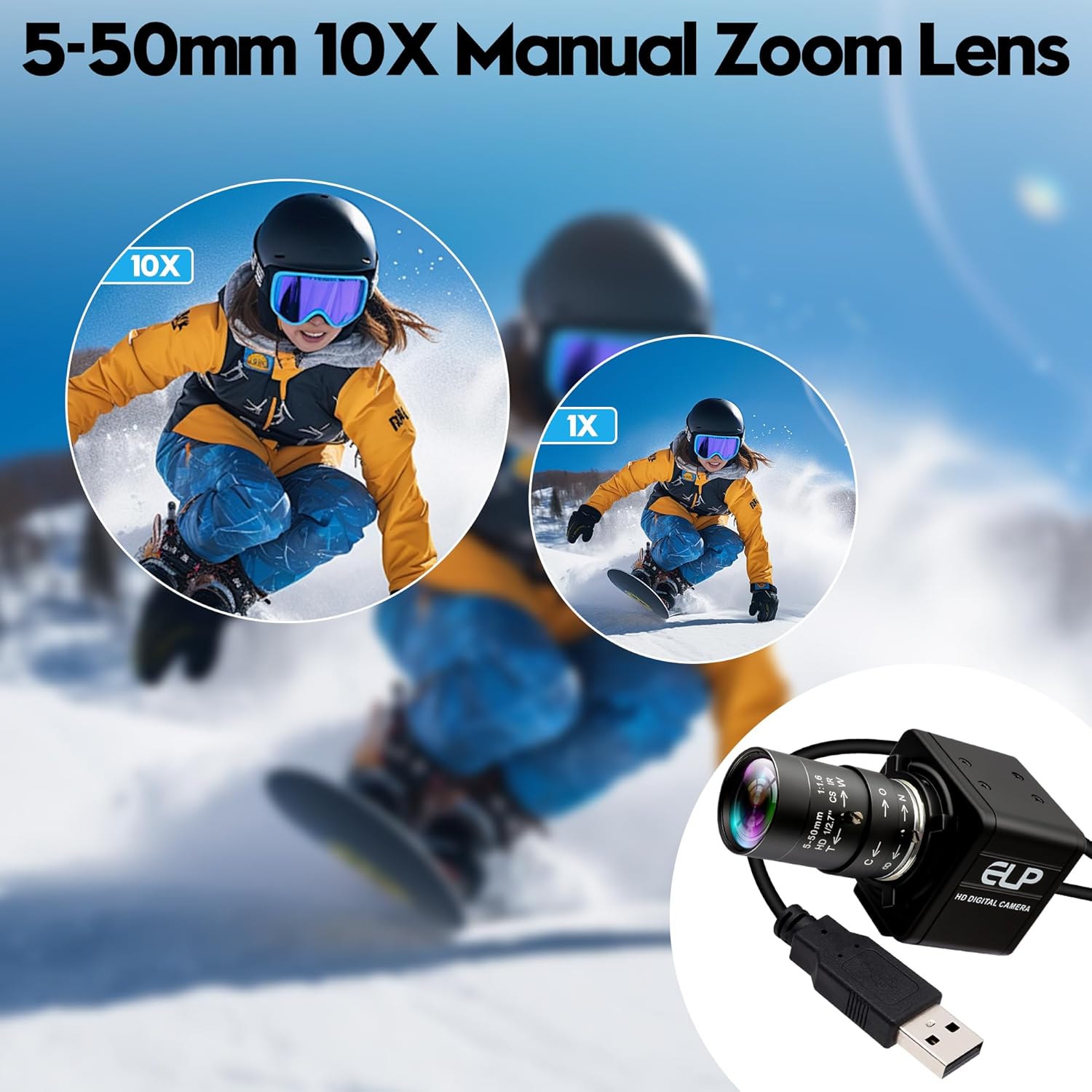

5-50mm 10X Manual Varifocal Lens: 16 Megapixels usb webcam with 5-50mm manual varifocal lens, and aluminum mini case, they can obtain different angles of view, different sizes of images, and different scene ranges by adjusting the focal length. Opened zoom, it will worked, manual control of aperture, zoom and focus, you need to loosen them slightly before the adjustments can be made, then they can be tightened again.
USB2.0 Plug & Play Convenience: This usb camera is UVC compliant, enabling seamless connectivity to PCs, laptops, Android devices or Raspberry Pi, using the provided USB cable. No extra drivers need to be installed. It is fully compatible with Windows, Linux, Mac OS, Android, supports OTG protocol, and integrates easily with Raspberry Pi.
Versatile Applications: Whether you need a camera for time lapse video recording, robotic systems, or 3D printers, our 16 megapixel usb camera module is perfect for your needs. It is highly recommended for applications such as video surveillance systems, live streaming, video conferences, dashcams, and various other vision related projects.
