Model: STS3215-12V(ST-3215-C018)
Product Name: 12V 30KG. Dual axis TTL string servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：45.2mm B：24.7mm C：35mm
Weight: 55± 1g
Gear type: Copper
Limit angle: NO limit
Bearing: Ball bearings

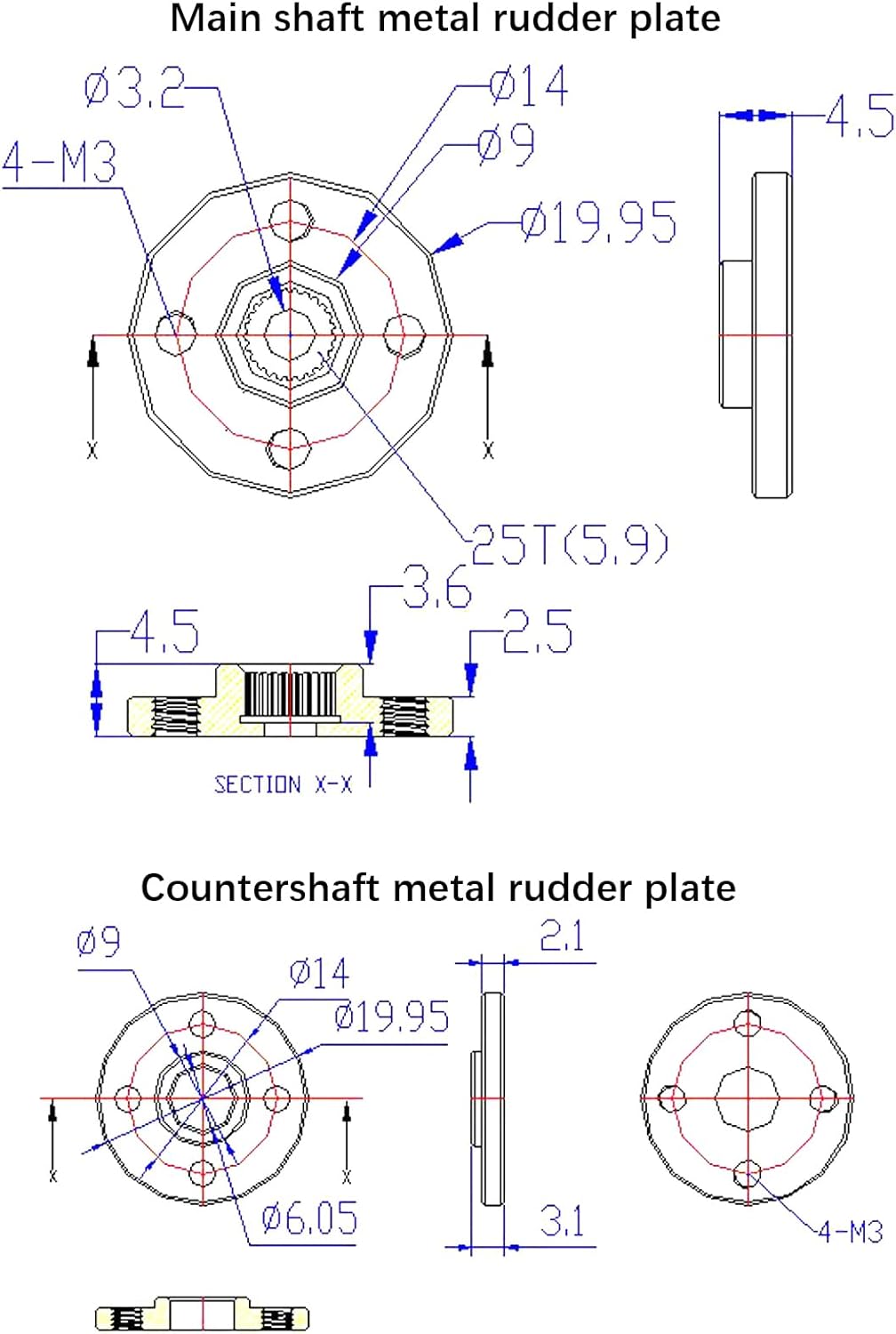

Horn gear spline: 25T/OD5.9mm
Horn type: Plastic, POM
Case: PA+GF
Connector wire: 15CM
Motor: Core Motor
Operating Voltage Range: 4-14V
No load speed: 0.222sec/60°@12V
Running current(at no load) : 180 mA@12V
Peak stall torque: 30kg.cm@12V
Rated torque: 10kg.cm@12V
Stall current: 2.7A@12V
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 360° (when 0~4096)
Feedback: Load, Position, Speed, Input Voltage, Current

Package includes:
1 x STS3215 12V 30KG Magnetic Encoder Servo
1 Set Metal Bracket for STS3215 servo

STS3215 12V 30kg serial bus TTL control smart servo, with 12 bit high precision magnetic coding sensor
360 degree continuous rotation while still offering position control over an effective range of 360 degree
Operating Voltage Range: 4-14V; No load speed: 0.222sec/60°@12V; Running current(at no load) : 180 mA@12V; Peak stall torque: 30kg.cm@12V; Rated torque: 10kg.cm@12V; Stall current: 2.7A@12V; Command signal: Digital Packet
Multiple servos can be daisy-chained on the same serial bus. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios
What you will get: 1 x STS3215 12V 30KG Magnetic Encoder Servo + 1 Set Metal Bracket for STS3215 servo
