Sipeed Tang Primer 20K GW2A Risc-V FPGA DEV Board, 128M DDR3 32Mb Flash 20K LUT4, HDMI USB RGB DSP LVDS BSRAM RJ45, for Rapid Development Validation Projects Education Learning (20K Lite Kit)

Sipeed Tang Primer 20K GW2A Risc-V FPGA DEV Board, 128M DDR3 32Mb Flash 20K LUT4, HDMI USB RGB DSP LVDS BSRAM RJ45, for Rapid Development Validation Projects Education Learning (20K Lite Kit)

by

Sipeed Tang Primer 20K GW2A Risc-V FPGA DEV Board, 128M DDR3 32Mb Flash 20K LUT4, HDMI USB RGB DSP LVDS BSRAM RJ45, for Rapid Development Validation Projects Education Learning (20K Lite Kit)
Price: $39.99
(as of Mar 22,2025 09:36:32 UTC – Details)

Buy Now

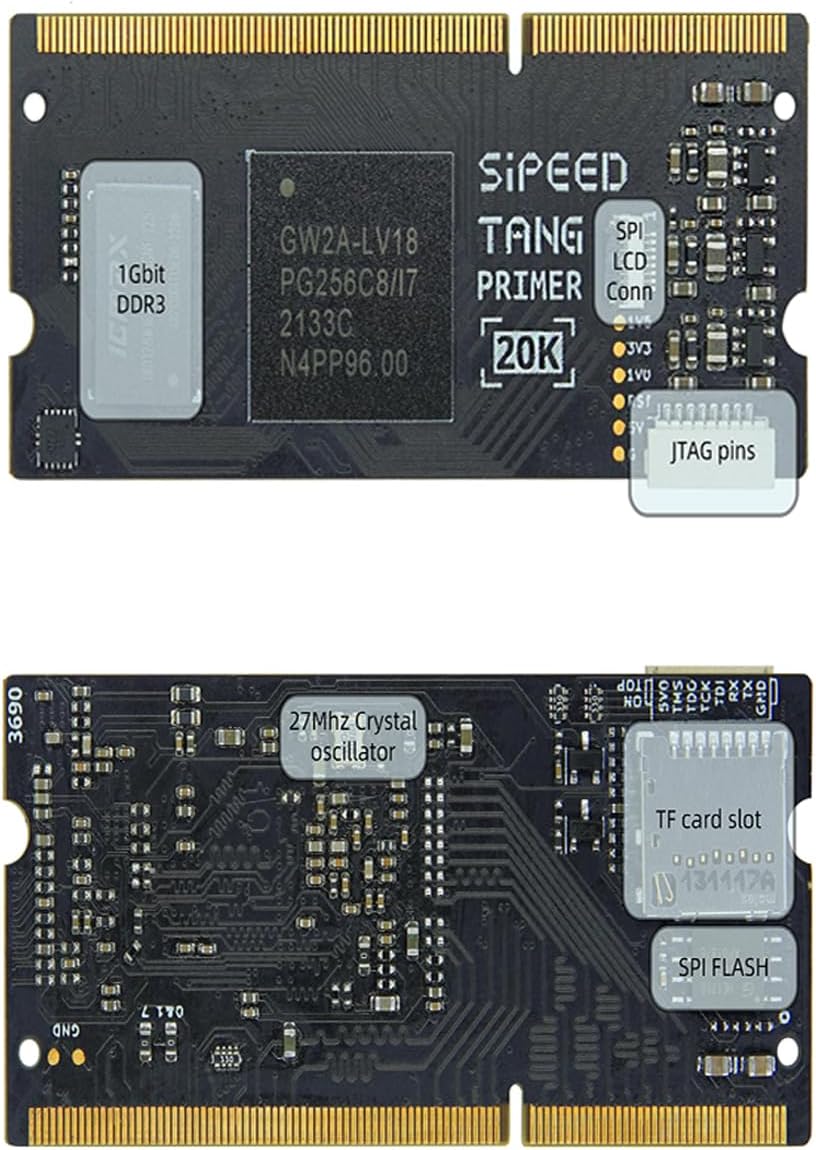

-Core board parameters-
FPGA chip GW2A-LV18PG256C8/I7
Logic unit (LUT4) 20736
Register (FF) 15552
Distributed static random access memory S-SRAM (bits) 41472
Block static random access memory B-SRAM (bits) 828K
Number of block static random access memory B-SRAM (units) 46
Multiplier (18×18 Multiplier) 48
Phase-locked loop (PLLs) 4
Total number of I/O banks 8
Memory 128M DDR3
Flash 32Mbits NOR Flash
Debug interface Jtag + Uart JST SH1.0 8Pins connector
SD card slot 1 push-pull type
Display interface 8Pins spi lcd connector
Overall package 204P DDR3 Sodimm gold finger
Available IO total 117
-Package Content-
Sipeed Tang Primer 20k Bundle x1
-Technical Support-
Please click “WayPonDEV” and ask a question.
IDE Getting Started:”wiki.sipeed.com/hardware/zh/tang/common-doc/get_started/install-the-ide.html”
[FPGA Learning and Development Platform] Sipeed Tang Primer 20K development board is designed for FPGA programming and digital logic experimentation. Featuring a 20K LUT FPGA chip and 128M DDR3 embedded RAM, it supports hardware acceleration, real-time signal processing, and custom circuit design, making it ideal for educational and prototyping applications.
[Powerful Hardware Configuration] Sipeed Tang Primer 20K core board uses the GW2A-LV18PG256C817 as the main chip, which has rich internal resources such as a high-performance DSP, a high-speed LVDS interface and BSRAM memory. Peripheral components such as DDR3 memory particles and power supply ICs are onboard, allowing users to use the core board alone to quickly develop and validate projects for high-speed and high-efficiency applications.
[Resourcefulness] Ideal for students, Risc-V developers, embedded engineers and electronics enthusiasts, Sipeed Tang Primer 20K development board includes pre-loaded demo projects and step-by-step tutorials. Learn FPGA basics, Verilog HDL/VHDL, C/C++ programming, and hardware/software co-design without complex setup. Compatible with open source toolchain for seamless development.

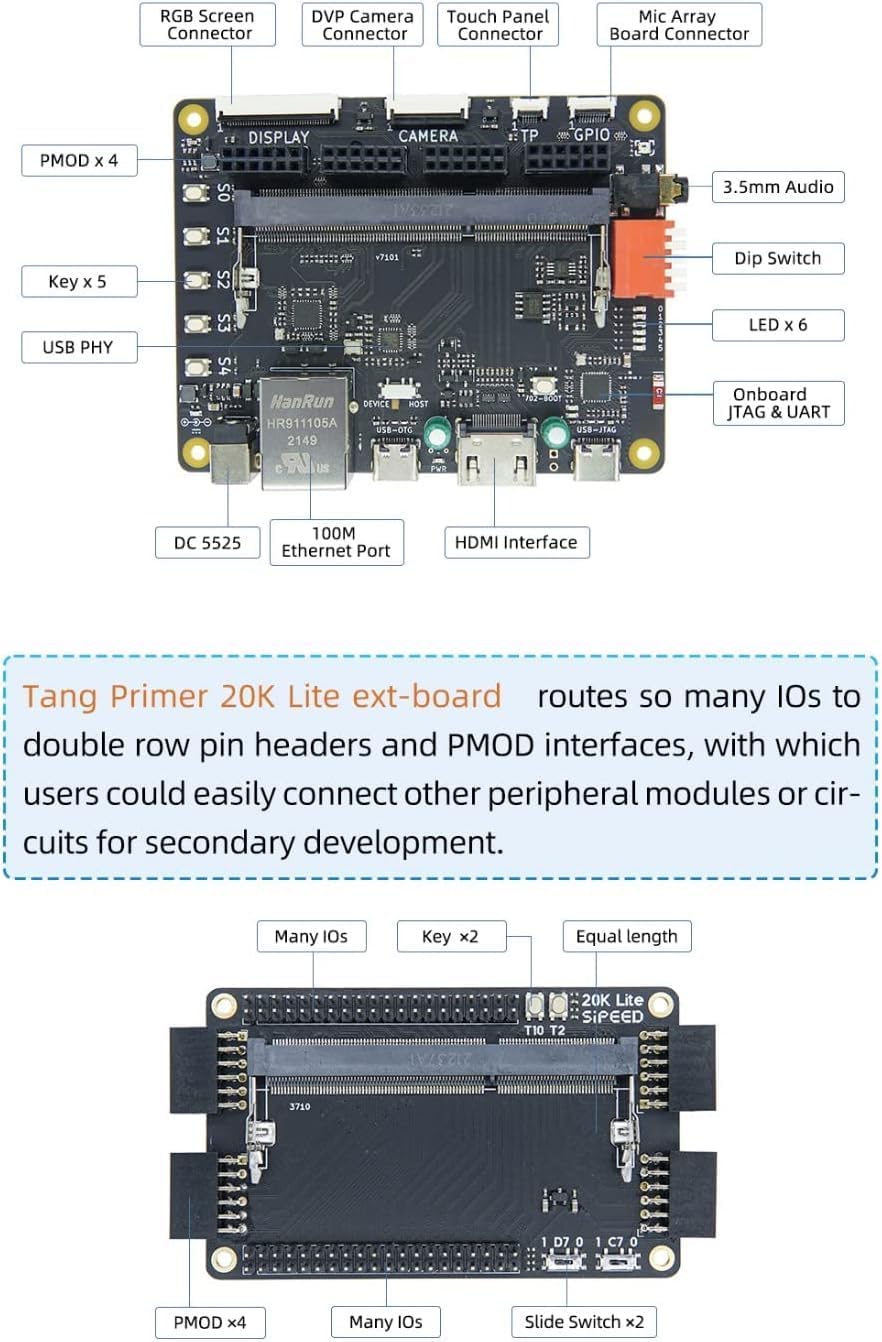

[Highly scalable] Sipeed Tang Primer 20K Dock board is equipped with a wealth of peripheral resources, such as on-board USB-JTAG & UART circuits, Ethernet PHY and RJ-45 connectors, USB2.0 PHY, HDMI output, stereo output circuits, and 3.5mm headphone connector, RGB screen connector, DVP camera connector. The 20K Lite base board leads to more than 10 through the row of pins and PMOD interface, users can easily connect other peripheral modules or circuits for secondary development.
[WIKI] Sipeed Tang Primer 20K DEV Board Kit SDK: “wiki.sipeed.com/hardware/en/tang/tang-primer-20k/primer-20k.html”. All after-sales questions, please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”. or click “WayPonDEV” store and ask the question.
