-Specification-
CPU: Allwinner V833 Cortex-A7 1.2Ghz main frequency
RAM: standard single chip 16bit 128MB DDR3
Storage: 128MB SD NAND on the core board (optional 512MB and 4GB) TF card holder on the bottom board, expandable storage
NPU: 0.4T
Video encoder: H.264, up to 5M@20fps / H.265, up to 5M@30fps / JPEG, up to 1080p@60fps
EISE: Up to 1080p@60fps
SDRAM: DDR2/DDR3/DDR3L
SMHC: SMHC x3 (SDcO, SDC1, SDC2)
SPI: SPI x3 (SPIO with 2 CS, SPIO supportsquad-output/quad-input SPl mode)
LCD: Parallel RGB, Serial RGB, i8080
DSPO: BT1120,BT656
l2S: l2S x2 (12S0,I2S1)
Parallel CSI: Support
Ethernet: 10/100/1000 Mbit/s Ethernet port with RGMll and RMll interfaces
TWI: TWI x5 (TWIO,TWI1,TWI2,TWI3,s_TwWIO)
RSB: support
GPADC: 2-ch
Audio Codec:
Output : LINEOUTP/N
Input: MICIN1P/N, LINEINL
MIPI CSI: 4-lane, up to 8M@30fps
MIPI DSI: Support
Package: LFBGA273
-Package Content-

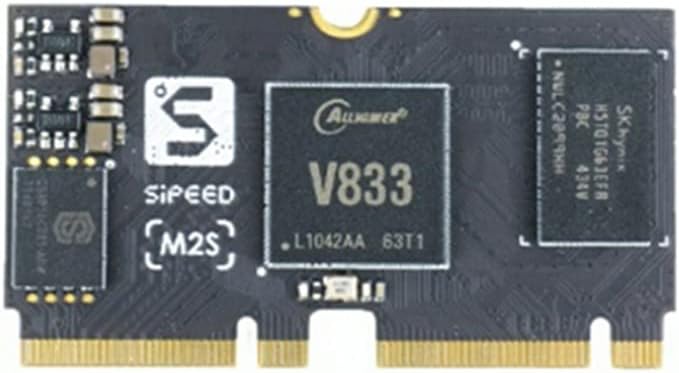

1 x Sipeed MAIX-II M2S AI+IOT V833 Linux Development Board
1 x Wifi Moudule with in the Board
-Technical Support-
Please click “WayPonDEV” and ask a question or monica#smartfire.cn (f——>@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
① Binocular camera face recognition,Sipeed MaixII M2S single board computers support infrared living detection
②Sipeed MaixII M2S single board computers maximum support for 2W face database, recognition accuracy 99.5% (LFW test set)
③Sipeed MaixII M2S single board computers Recognition speed 0.1s, comparison speed 0.x4s @ 2W face
④Sipeed MaixII M2S single board computers onboard MIPI screen display interface, supports common 5/7/10.1-inch screens, supports capacitive touch
⑤Sipeed MaixII M2S single board computers support multiple network connection methods: Ethernet, WIFl, 4G/CAT1
⑥Export a variety of peripheral interfaces: serial port/485/IlC/SPI/USB/GPIO⑦Linux system, support standard firmware/serial port instructions/secondary development
