Price: ~~$42.99~~ - $114.45
(as of Mar 27,2025 09:08:13 UTC – Details)

Buy Now

Product Description

6 Pin Connector

Hall Effect and Potentiometer Feedback Options

Select models offer hall effect and potentiometer feedback for position control capabilities.

Corrosion Resistance

Extra Corrosion Resistance for Harsh Environments

The Salt Spray rated version of PA-10 mini actuators offers up to 400 hours of salt spray exposure.

Space Efficient

Small Form Factor For Tight Space Restrictions

Mini linear actuators are designed with a compact body for performance and space efficiency.

Ingress Protection

Options for IP68M and IP69K Rated Units

The PA-10 waterproof electric linear actuator has a weather protection rating of IP68M and IP69K.

Voltage Options

Simple Operations For 12 VDC or 24 VDC Systems

The PA-01 is available in 12VDC and 24VDC options for seamless systems integration.

1 Positional Feedback

2 Salt Spray Rating

3 Compact Designs

4 Waterproof Rated

5 Seamless Integration

Mini Linear Actuators Comparison Table

Add to Cart

Customer Reviews

5.0 out of 5 stars 1

4.2 out of 5 stars 184

4.2 out of 5 stars 39

—

4.1 out of 5 stars 75

3.8 out of 5 stars 44

Price

$113.31$113.31

$114.45$114.45

$194.39$194.39

$231.00$231.00

$163.80$163.80

$152.25$152.25

Voltage

12 VDC, 24 VDC

12 VDC

Stroke

1″ to 12″

1″ to 40″

2″ to 36″

2″ to 24″

2″ to 40″

Dynamic Force

16, 28, 56, 112, 169, 225 lbs

35, 50, 150 lbs

450 lbs

330 lbs

35, 50, 150 lbs

Speed – Full Load

2.66 to 0.2 “/s

1.38, 0.83, 0.28 “/s

0.16, 0.33 “/s

0.27 “/s

1.38, 0.83, 0.28 “/s

Current – Full Load

≤ 4 A, ≤ 2 A

5 A, 2.5 A

6 A, 4 A

4 A, 3 A

5 A

Duty Cycle

25%

20%

25%

Weather Protection

IP65

IP54

IP68M, IP69K Static

IP66

IP54

Additional Features

–

400hr Salt Spray Rating option

Hall Effect Sensors

–

Potentiometer Feedback

Operating Noise

<45 dBA

Actuator Type

Mini, Industrial

Mini

Mini, Industrial

Mini

Housing Material

Aluminum Alloy 6062

Aluminum 6062

Anodic Oxidation

Aluminum 6062

Aluminum Alloy 6062

Certifications

–

CE, RoHS

–

CE, RoHS

Control Boxes Compatibility Chart

PA-25 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-28 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-30 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-31 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-33 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-35 Compatible with: PA-01, PA-09, PA-10, PA-14 PA-39 Compatible with: PA-14P PA-40, PA-40-24VDC Compatible with: PA-10-HALL PA-41-4-12V24V Compatible with: PA-10-HALL PA-CB1-4-12VDC Compatible with: PA-01, PA-09, PA-10, PA-14 PA-CB1-4-24VDC Compatible with: PA-01, PA-09, PA-10, PA-14-24VDC FLTCON-1 Compatible with: PA-10-HALL FLTCON-2 Compatible with: PA-10-HALL FLTCON-3 Compatible with: PA-10-HALL FLTCON-4 Compatible with: PA-10-HALL FLTCON-2-24VDC Compatible with: PA-10-HALL

Can I Use Your Actuators to Replace The One That I Already Have?

Our actuators can be seamless replacements for most applications, however, should verify the necessary specifications for compatibility such as voltage rating, force rating, speed, ingress protection requirements, and stroke length.

Are All of Your Control Boxes Compatible With All Of Your Linear Actuators?

No. However, we have a large variety of control boxes to choose from for each actuator. Alternatively, you may also use rocker switches as a form of motion control.

Can I Use My Own Control Box?

Yes, however, you need to ensure your control box can provide sufficient current draw and compatible voltage. Otherwise, you risk damaging your actuator(s).

Can I Use My Own Power Supply as a Source For My Actuators?

Yes. However, it is important to have sufficient voltage and current to be applied to your actuator.

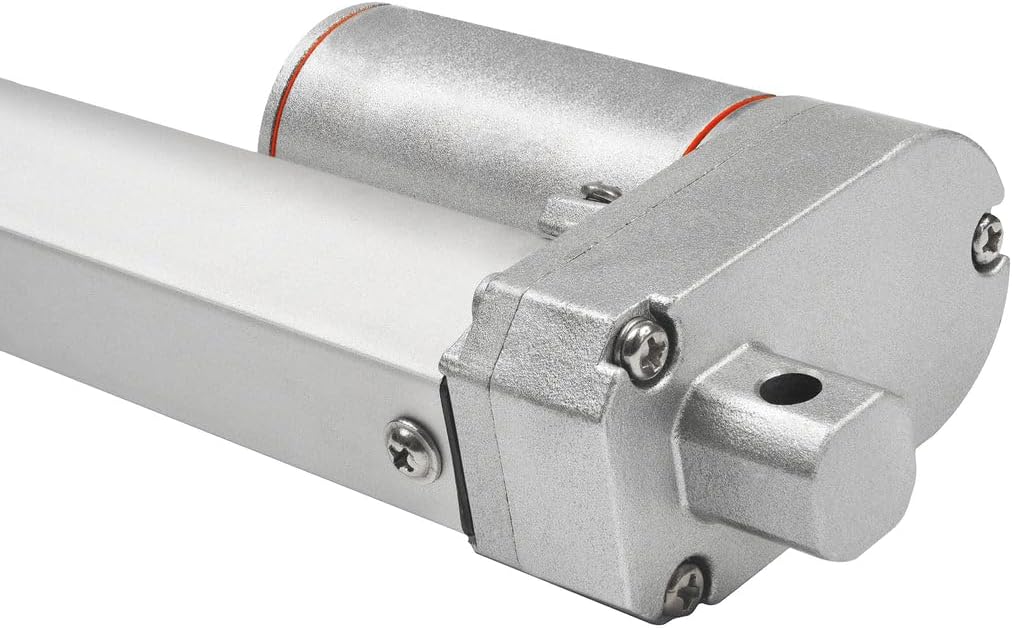

Compact Size: The PA-14 mini linear actuators offer lots of capabilities in a compact design perfect for installation in areas with tight space constraints
Versatile Specifications: Versatility off the shelf comes available in either 12 VDC or 24VDC options, a wide stroke range from 1 to 40 inches, and force ratings ranging from 35 lbs to 150 lbs
Use Cases: Compact with medium force capabilities, the PA-14 linear actuator has a low current draw and suitable for automotive, automation systems, manufacturing industries, factory, home automation, machinery, material handling adjust, mechanical equipment, medical devices, robotics, smart automation, furniture adjustment, automatic cabinet door opener, deck chair, electric sofa, electric wheelchair, drawer and tool box, pet feeder, recliner, window opener
Compatibility Options: The PA-14 mini linear actuator features a standard 2-Pin Molex Mini-Fit Jr connector, simplifying installation and integration into existing systems
Top Quality: Progressive Automations is ISO 9001:2015 certified and committed to bringing top quality to all our linear actuators to ensure the durability and performance that serve you well over the years
