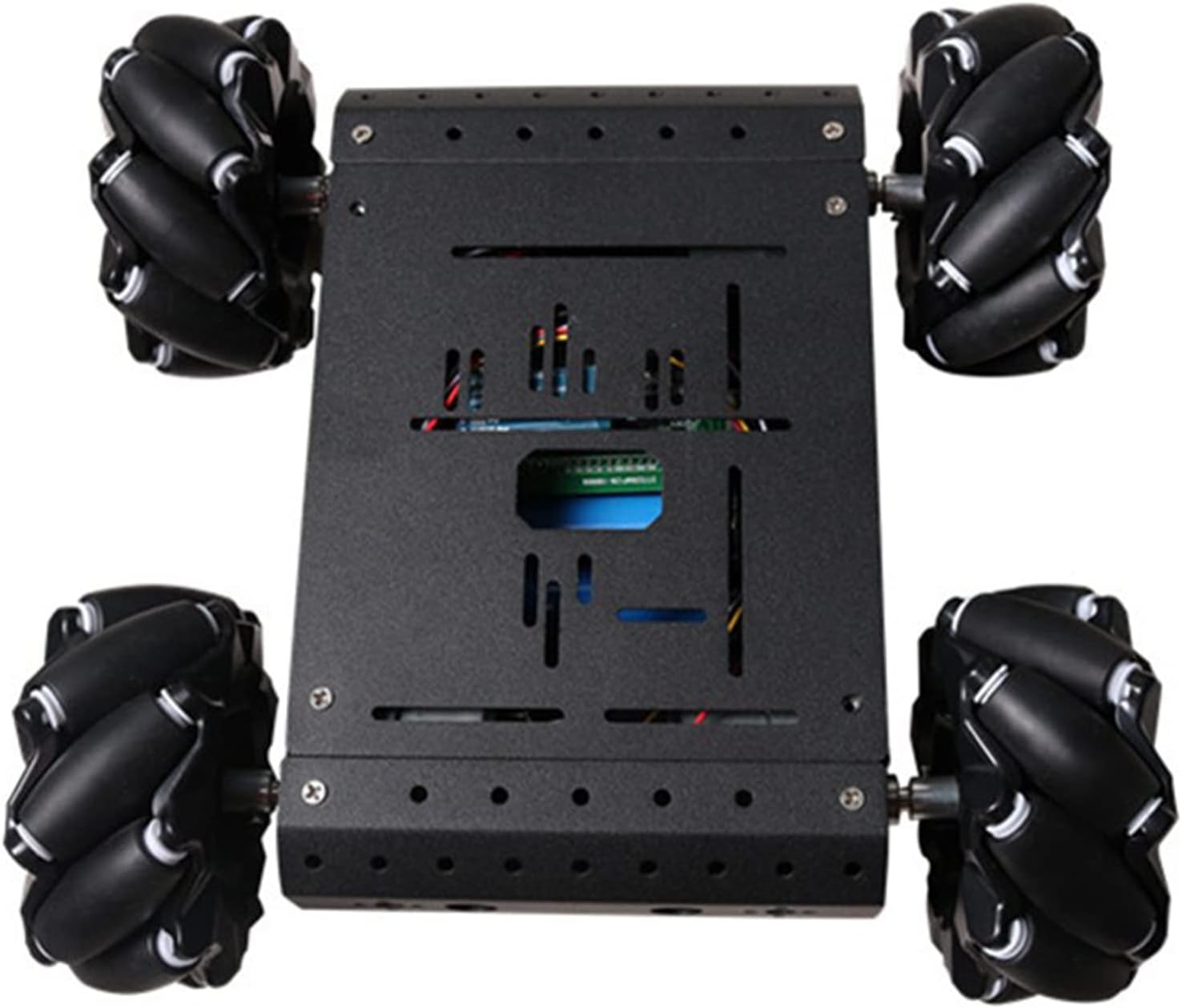

SmaringWing Professional 4WD Mecanum Wheel Robotic Chassis Kit for Arduino / Raspberry pi / Micobit, C400 96mm Omnidirectional Wheel DIY Smart RC Metal Car Chassis Platform with DC Speed Encoder Motor for Teens Adults
Features:

• The panel is made of 3mm aluminum alloy, which is beautiful and strong;
• The robot comes with 4 high-torque DC encoder motors, which provide sufficient horsepower for the chassis, and the chassis travels fast;
• The robot chassis is equipped with 4pcs 96mm omnidirectional mecanum wheels, allowing your robot to not only move forward and backward, but also left and right. Great for tight spaces;
• This is a great omnidirectional wheel robot chassis, ideal for robot learning, competitions, DIY projects, etc.;
• For the shipping convenience, the product is unassembled;
• The size may have 2-3mm differs due to the maunal measurement.

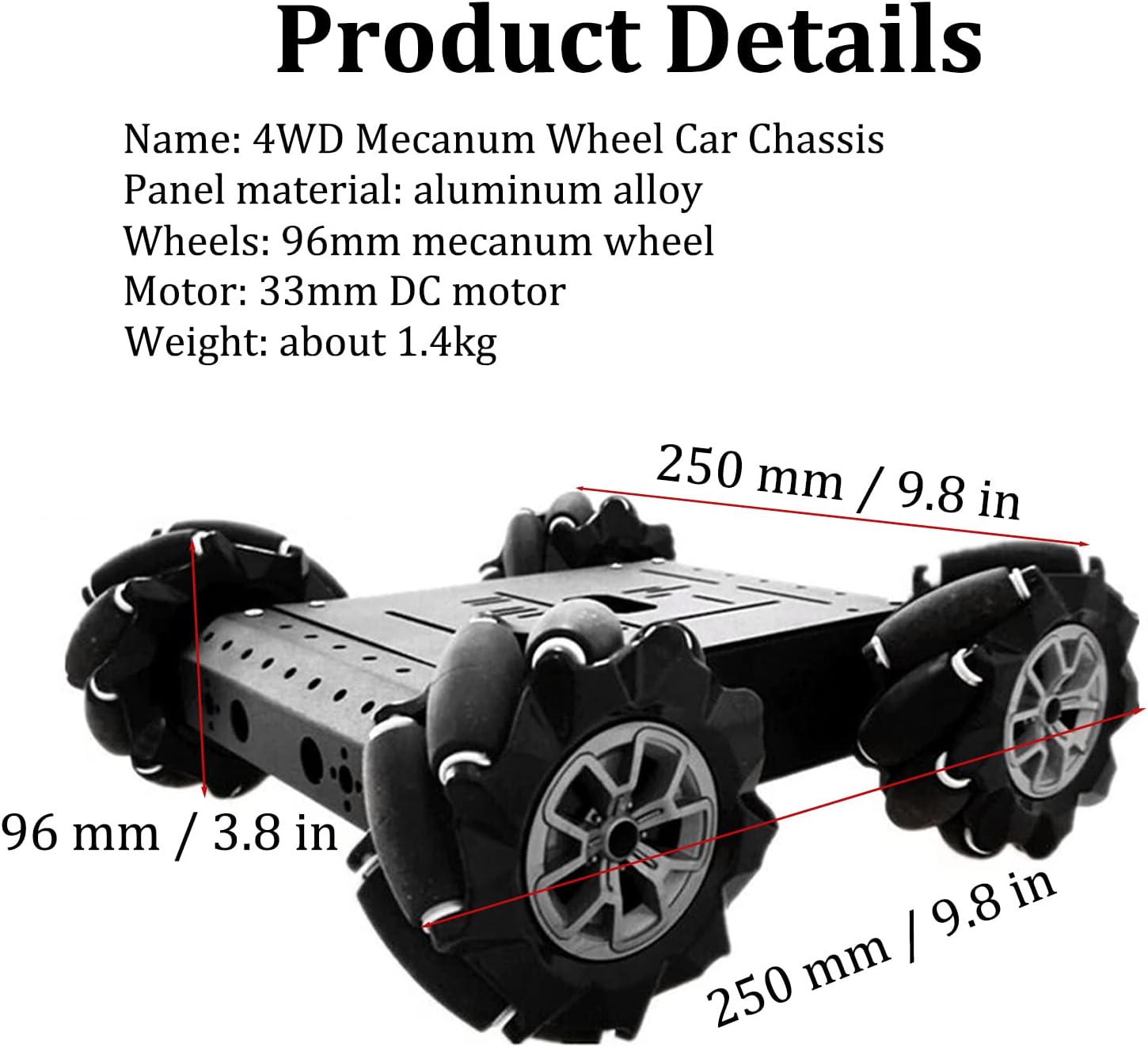

Robot Car Chassis Parameters:

• Name: 4WD Metal Smart RC Car Chassis
• Model: C400
• Plate material: 3mm aluminum alloy
• Surface treatment: Sandblasting oxidation
• Motor: DC encoder motor
• Plate color: Black
• Size: 250 x 250 x 96 mm / 9.8 * 9.8 * 3.8 inch
• Weight: About 1.4kg

Motor Parameters:

• Name: 33mm DC motor
• No_load current: 100mA
• No_load speed: 175-350RPM
• Voltage range: 6V-12V
• Rated voltage: DC12V
• Weight: About 100g

96mm Mecanum Wheel Parameters:

• Name: Mecanum Wheel
• Weight: About 150g (single)
• Outer wheel diameter: 96mm/3.8inch
• Thickness: 45mm/1.8in
• Number of sub-wheels: 9
• Bearing capacity: Can bear 10kg (4 together)
• Coupling: 4mm/6mm
• Note: Mecanum Wheel has left and right

Package Included — This omni wheel smart robot car chassis kit (model: C400) contents 1*metal plate, 4*96mm mecanum wheels with 4*couplings for DC encoder motor, 4*DC motors with 4*encoders, screw kit and other part. Omni-directional wheels allow your robotic car chassis to move in all directions and drift.
Robot Learning Platform — This omni-directinal mecanum wheel moving platform is perfect for STEAM education. Many schools or education departments choose this car chassis for school students to learn AI robot knowledge. In addition, this robotic chassis can be used in maker education kits, school robot competitions and robot learning. This is a great gift for a friend or family member who loves robots.
Metal Plate — Metal panel is made of 3mm aluminum alloy, which is beautiful and strong. The surface is sandblasting oxidation, and has many installation holes, which can be compatible with services, Arduino UNO R3, NodeMCU, Raspberry pie. Also can use other controller kit. We can provide the Arduino source code for this car chassis.
DC Speed Encoder Motor — This smart car chassis is equipped with 4 DC motors and 4 circle encoders so that you can get speed status or other feedback. This 4wd mecanum wheel car chassis platform is the good choice for AI Robot RoS Learning Robot Kit.
Mecanum Wheel Car Chassis — The product is not assembled for ease of transportation. This metal car chassis is easy to assemble and we provide a simple manual to remind installation. The Arduino source code can be found at the manual. If you have any questions about the robot platform, please feel free to contact us. We will get back to you within 24 hours.
