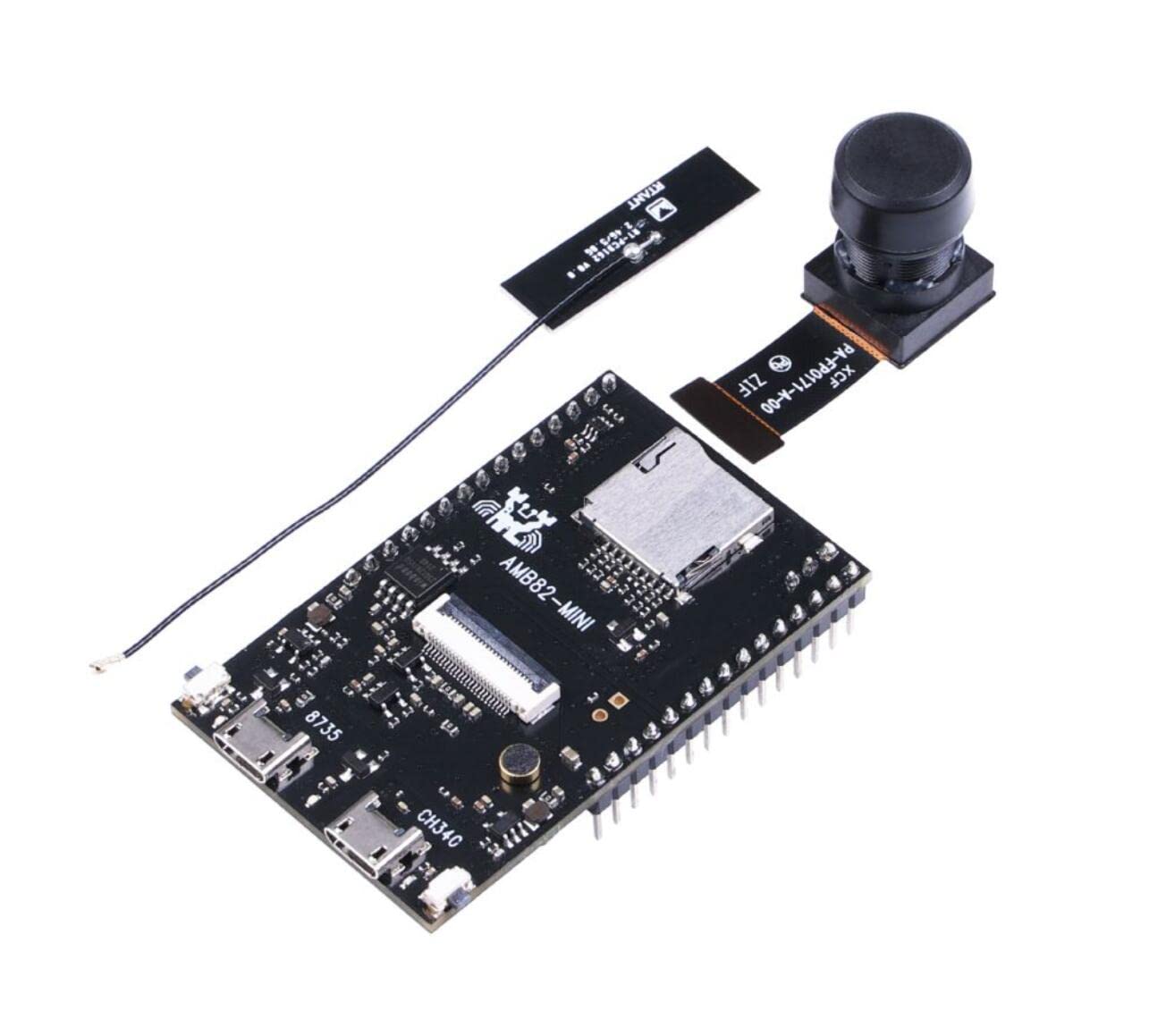

AMB82-MINI development board is adopting RTL8735BDM SoC, it is suitable for battery-powered appliances or equipment required AI network camera applications, no worry to power consumption and IoT security. AMB82-MINI is easy to program and learn AI model with this powerful AIoT development kit. RTL8735BDM is a highly integrated low-power 802.11 a/b/g/n WLAN and Bluetooth camera SoC, DualBand Wi-Fi, Bluetooth BLE5, audio codec, ISP and H264/H265 encoder, DDR2 128MB memory, and neural network intelligent engine in a single chip. It also provides useful high-speed connectivity interfaces, such as a USB 2.0 host, USB 2.0 device, SD host, and a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage. Application AIoT AI camera Battery camera Security camera Smart home Industrial applications Specification Parameter Detail MCU ARMv8M up to 500MHz NPU Intelligent Engine @ 0.4 TOPS Memory internal DDR2 128MB on SoC and 16MB external SPI Nor flash on Dev. Board Wi-Fi 802.11 a/b/g/n 1×1, Dualband 2.4GHz/5GHz Wi-Fi Wi-Fi simple config Bluetooth BLE 5.1 Security Hardware cryptographic engine Secure boot (optional) Trust-Zone (optional) Wi-Fi WEP, WPA, WPA2, WPA3, WPS Audio Codec ADC/DAC/I2S ISP/Video HDR / 3DNR / WDR ; H264/H265/JPEG video encoder 1080p@30fps +720p@30fps Camera module JXF37 1920×1080 full HD CMOS image sensor with wide view angel FOV 130° optical lens Interface 1 Microphone on Dev Board, 2 Micro USB_B, 1 MicroSD card slot, 2 tact switch button 3 UART 2 SPI 1 I2C 8 PWM 2 GDMA Max. 23 GPIOs
Date First Available ‏ : ‎ March 4, 2023
Manufacturer ‏ : ‎ Seeedstudio
ASIN ‏ : ‎ B0BXH2WRRX
Country of Origin ‏ : ‎ China

Worldwide leading Ultra-Low-Power AI Wi-Fi IP Camera SoC：8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K
Fast boot-up in milliseconds; ultra-low power in microampere
Supporting battery-powered, AI & IoT Ecosystems
Multiple streams real-time H.265/H.264/JPEG encoding
SDK supports for free RTOS, supports for IAR, supports for GCC, supports for Arduino IDE
