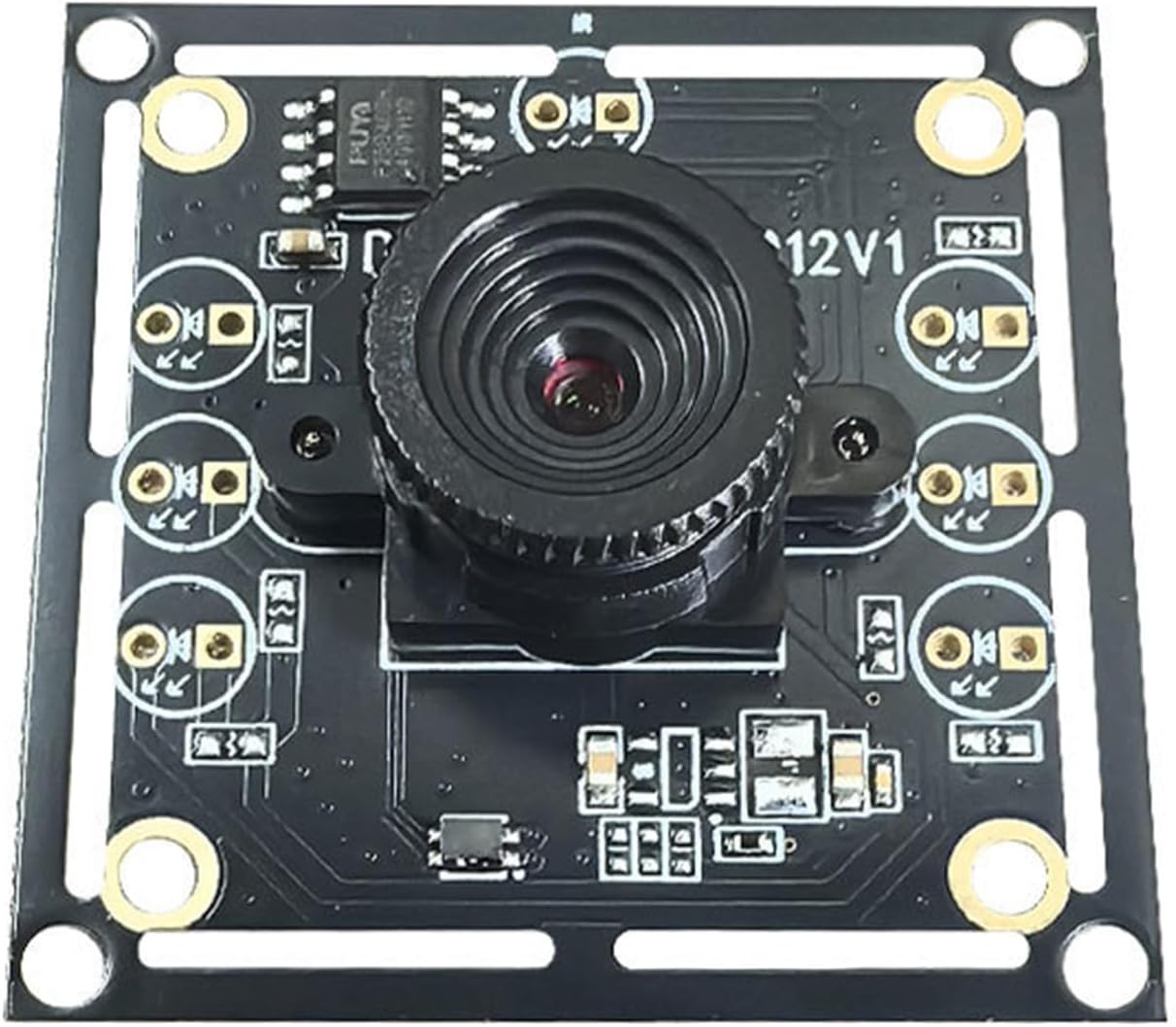

1 Set High Resolution Industrial USB Camera Module 100° Wide Angled OV9732 720P/30fps Fixed Focusing And Auto Exposure

Features:
1MP 720P/30fps pixel, high resolution lens module, clear picture.
Upgraded OV9732 chip, with stable performances.
Large 100 degree field of view, wide viewing, broader field of view.
Strong compatibility, supports XP/7/8/10 and more systems, USB port, not need driver, use.
Widely used in license plate recognition, face recognition, UAV photography, overhead camera, gate access and more.

Specifications:
Component: ABS+Metal
Type: with 1m cable, with 2m cable, with 3.0m cable(optional)
Module Board Side Length: Approx. 38mm/1.5inch
Cable Length: 1m/3.28FT, 2m/6.56ft, 3.0m/9.84ft
Name: 100 Degree USB Industrial Camera Module
Chip: OV9732
Photographic film: (1/4inch)
Effective pixel: up to 1280 (H) x720 (M)
Lens size: 1/4inch (4:3)
Focal length: 2.84m
Diagonal: 100°
Port: M12xP0.5
Pixel size: 3.0um x 3.0um
Imaging area: 5.7mmx4.28mm
Supported resolution and frame rates: 1280×720@30fps MJPEG, 1280×720@10fps YUV, 800×600@30fps MJPEG, 800×600@15fps YUV, 640×480@30fps MJPEG 640×480@30fps YUV
Focal Point: Fixed
Interfaces type: USB2.0
Automatic Exposure Control: Supports
Automatic White Balancing: Supports
Parameters: brightness/contrast/color saturation/tone clarities/white balancing/backlits contrast/exposure

Package Includes:
1 Piece OV9732 USB Industrial Camera Module
1 Piece USB Cable(Different Length Avaliable)

Note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
1MP 720P/30fps pixel, high resolution lens module, clear picture.
Upgraded OV9732 chip, with stable performances.
Large 100 degree field of view, wide viewing, broader field of view.
Strong compatibility, supports XP/7/8/10 and more systems, USB port, not need driver, use.
Widely used in license plate recognition, face recognition, UAV photography, overhead camera, gate access and more.
