Important Notes:

This kit does NOT include Raspberry Pi and its accessories.
This display has no HDMI port and is only compatible with certain models of Raspberry Pi.

Overview:

This is a 5 inch IPS monitor with 5-point touch capacitive screen for Raspberry Pi.

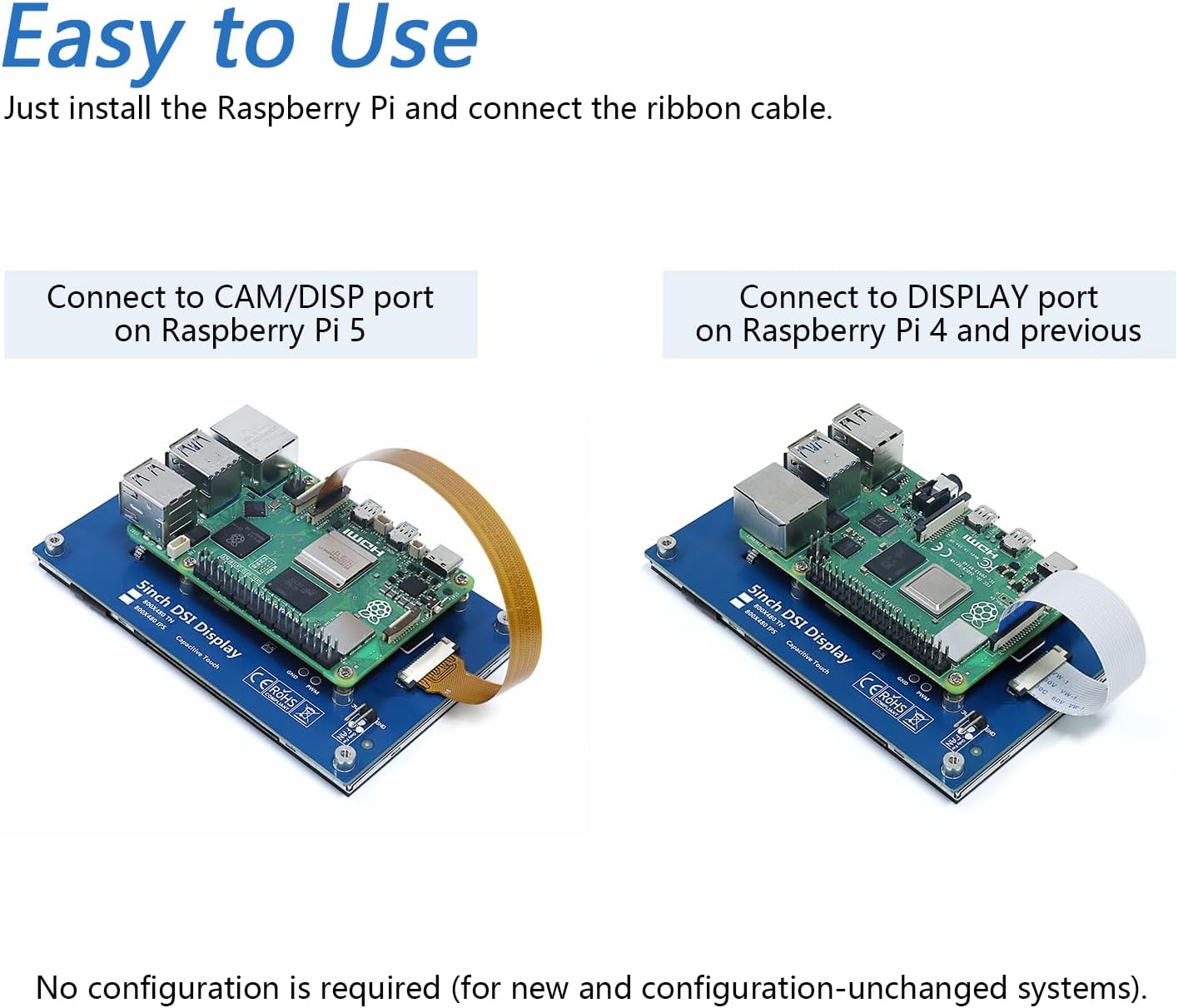

Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous).

We provide free technical support to help you with any questions and problems.

Compatible Models:

* Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+

(Note: No HDMI, not compatible with any other device.)

Tutorial:

Comes with tutorial to show how to use. (Downloadable and paper tutorial.)
The download link can be found on the product box.

Screen Parameters:

Size: 5 inch
Resolution: 800 x 480 pixel
Refresh rate: 60 Hz
Screen type: IPS wide viewing angle
Touch type: 5-point touch capacitive
Interface: MIPI DSI

Package Includes:

1 x Touchscreen monitor
1 x Ribbon cable (5cm)
1 x Ribbon cable (10cm)
1 x Ribbon cable (16cm) for 5
1 x Cross screwdriver
4 x M2.5*4+4 standoff
4 x M2.5*4 screw
2 x M2.5*12 screw
2 x Monitor stand

Specifically for Raspberry Pi: Only need the connection to the display port (marked CAM/DISP on Raspberry Pi 5, DISPLAY on 4 and previous)
Compatible Models: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ (No HDMI, not compatible with any other device)
Compatible Systems: Raspberry Pi OS (multi-touch available) / Ubuntu (single touch only)
Screen Parameters: 5 inch, 800×480 pixel, IPS type wide viewing angle, 5-point touch capacitive screen
Easy to Use: No configuration is required (for new and configuration-unchanged systems)
