QIIRUN, Your Fiber Optic Products Provider, Professional
Product Dimensions ‏ : ‎ 6.5 x 10.04 x 7.28 inches; 11.95 Pounds
Item model number ‏ : ‎ AI-20-US
Batteries ‏ : ‎ 1 A batteries required. (included)
Date First Available ‏ : ‎ February 17, 2025
Manufacturer ‏ : ‎ Signal Fire Technology Co Ltd
ASIN ‏ : ‎ B0DPKMCM7L
Best Sellers Rank: #1,216,627 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #2,243 in Multi Testers
Customer Reviews: 1.0 1.0 out of 5 stars 1 rating var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) if (dpAcrHasRegisteredArcLinkClickAction !== true) dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, “allowLinkDefault”: true , function (event) if (window.ue) ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) ); ); P.when(‘A’, ‘cf’).execute(function(A) A.declarative(‘acrStarsLink-click-metrics’, ‘click’, “allowLinkDefault” : true , function(event) if(window.ue) 0) + 1); ); );

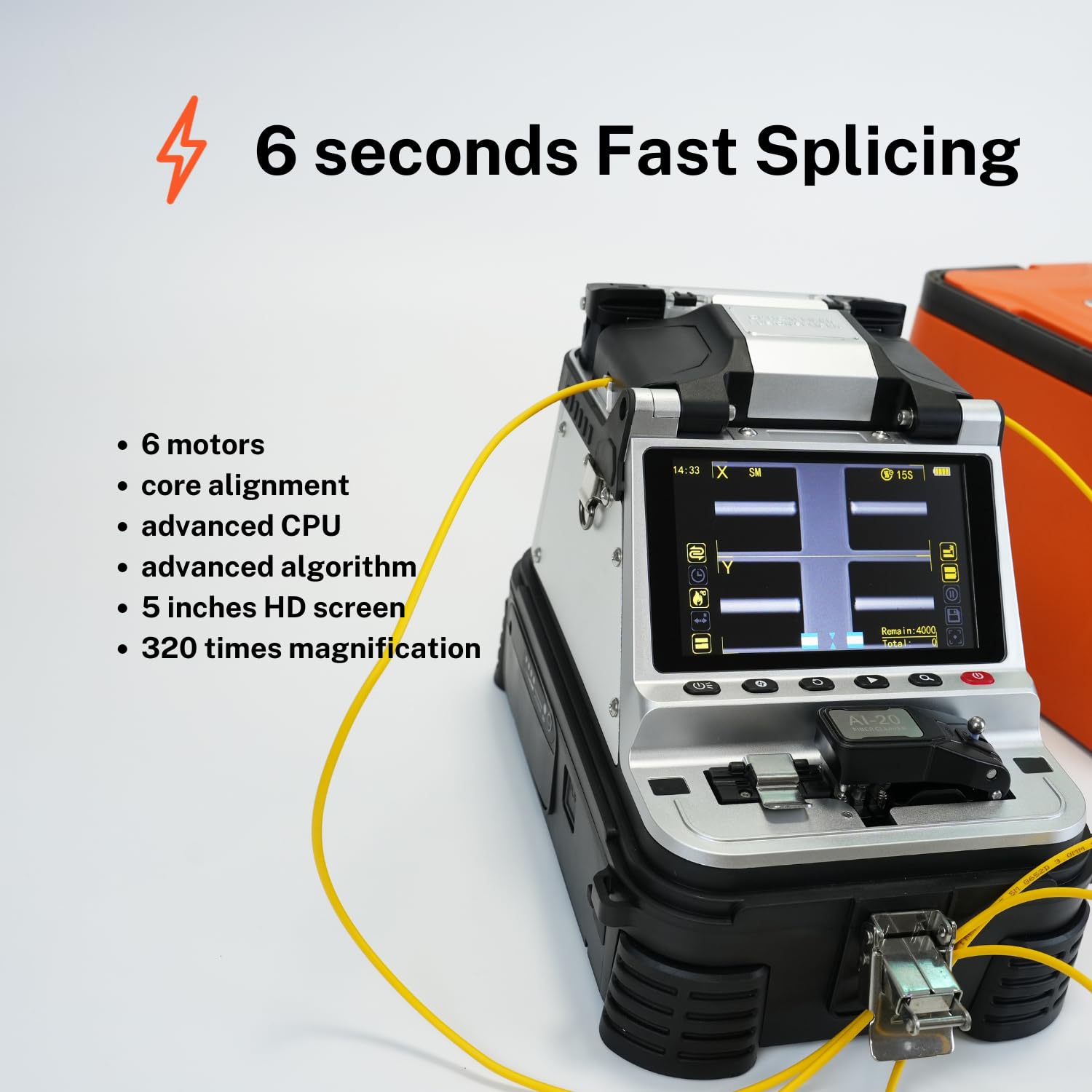

New Model Trunk Line Fusion Splicer Fiber Optic – Same as its previous generation AI-10A, the AI-20 is a full-link integrated design of the fourth generation of optical fiber fusion splicer, it combines high-precision electric cleaver, optical fiber splicing into one unit, while integrating OPM and VFL function. The biggest change is the newly designed electric fiber cleaver. With 9-in-1 fiber optic stripper, AI-20 fiber optic splicer combined with the toolbox and work stool, making it a new generation of optical fiber fusion splicer, small size, light weight, easy to operate

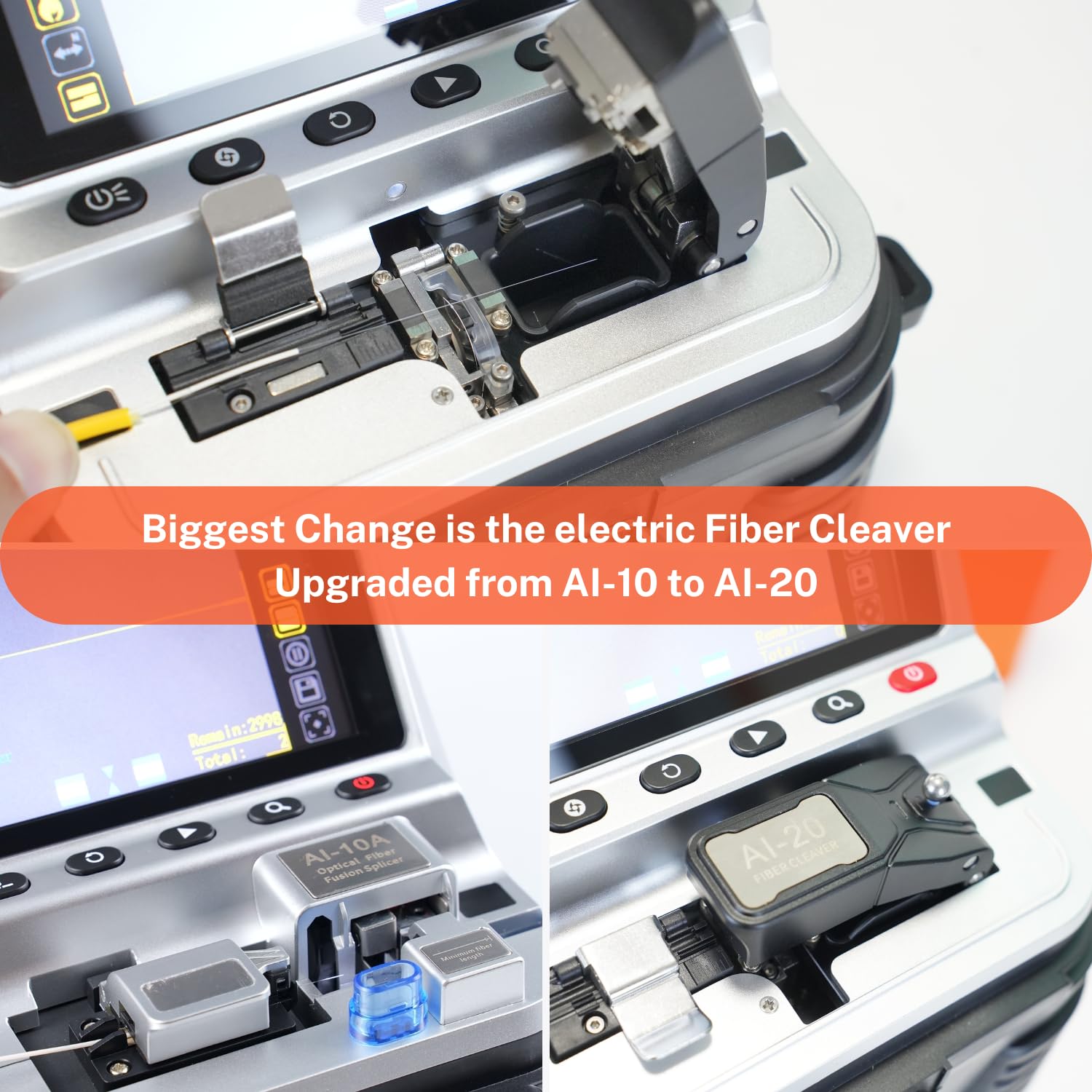

Newly designed built-in high precision Delay Return Electric one-step fiber cleaver – After optical fiber is placed and the cover closed, the fiber cleaver automatically cuts. It is so easy and convenient to use. Automatic delayed cleaver return perfectly solves the problem of traditional mechanical one-step cleaver back cutting scratching the fiber end face

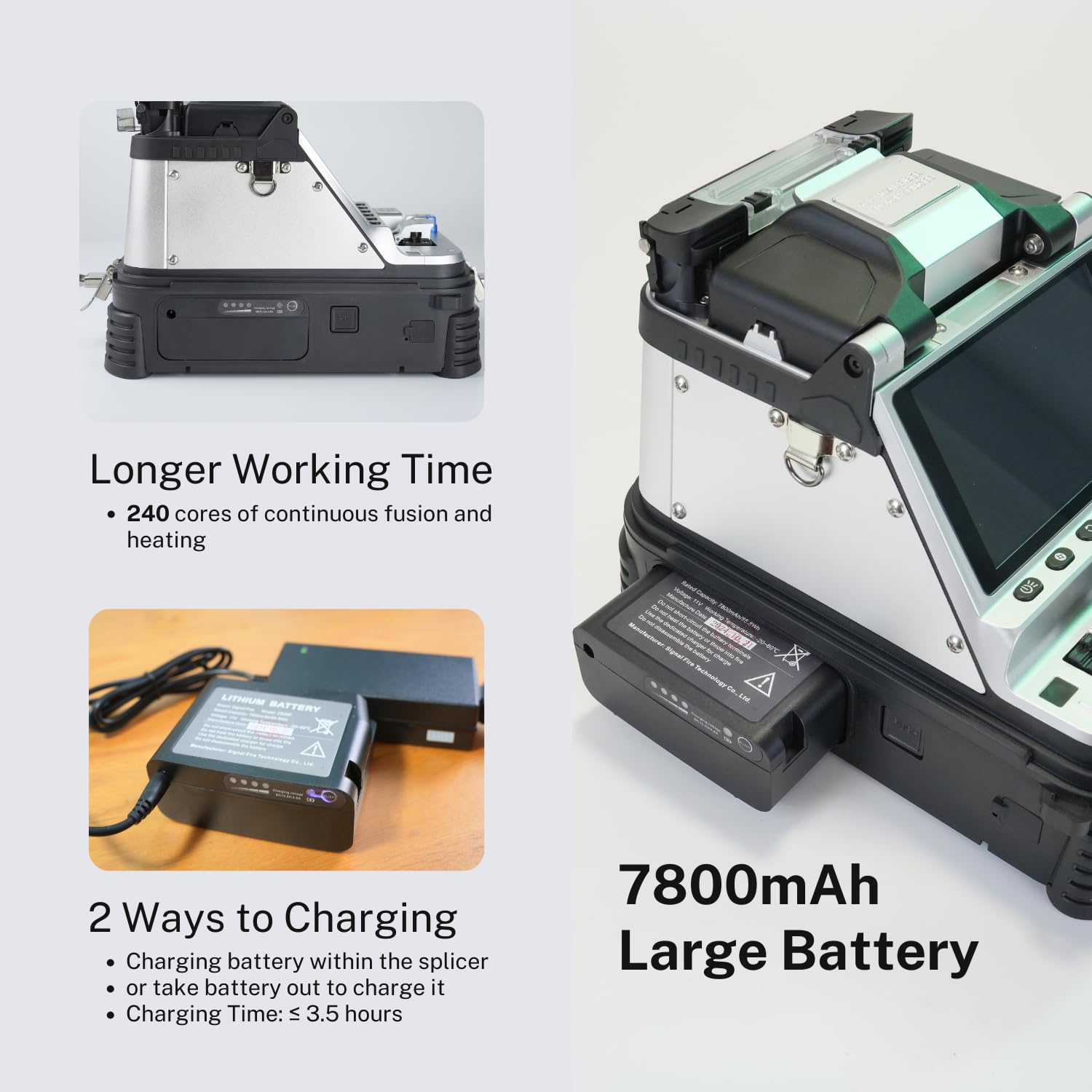

Built-in OPM and VFL functions with Large Battery Capacity – AI-20 Optical Fiber Fusion Splicer machine equips with Optical Power Meter (-50~+30dBm, 850-1650nm) and Visual Fault Locator (10km), and has 7800mAh li-ion battery that supports 240 times of continuous splicing and heating. Truely AI-20 optical fiber fusion splicer can bring great convenience to you
Intelligent interaction via APP– Same as AI-9 / AI-10A fusion splicers, to fully make use of your AI-20 fusion splicing machine, you have to download the dedicated APP to set the parameters of the welding machine, such as selecting the machine language, changing the heating time, selecting the fiber optic alignment mode, etc. User self-learning resources with documents and videos are also available in this APP
Other Features of AI-20 Fusion Splicer – 1) Innovative and integrated new Toolbox which is compact and portable; 2) Ultra thick protective rubber pad provides maximum protection, 3) Metal body with exquisite details, 4) supports multi-languages; 5) cooling rack is expandable and closeable; 6) Water-proof, dust-proof, adapts to various harsh environments. AI-20 Fusion Splicer Kit is perfect for telecom, optical fiber line construction and maintenance, teaching and researching
