Product Description

Learning, Education and Entertainment

All-direction Mecanum Wheels Robot Projects

A Mecanum wheel is a wheel with rollers attached to its circumference. These rollers are positioned diagonally or at 45-degree angle to the axis of rotation of the wheel. This makes the wheel exert force in diagonal direction when moving forward of backward. So, by rotating the wheels in certain pattern, we utilize these diagonal forces and thus the robot can move in any direction.

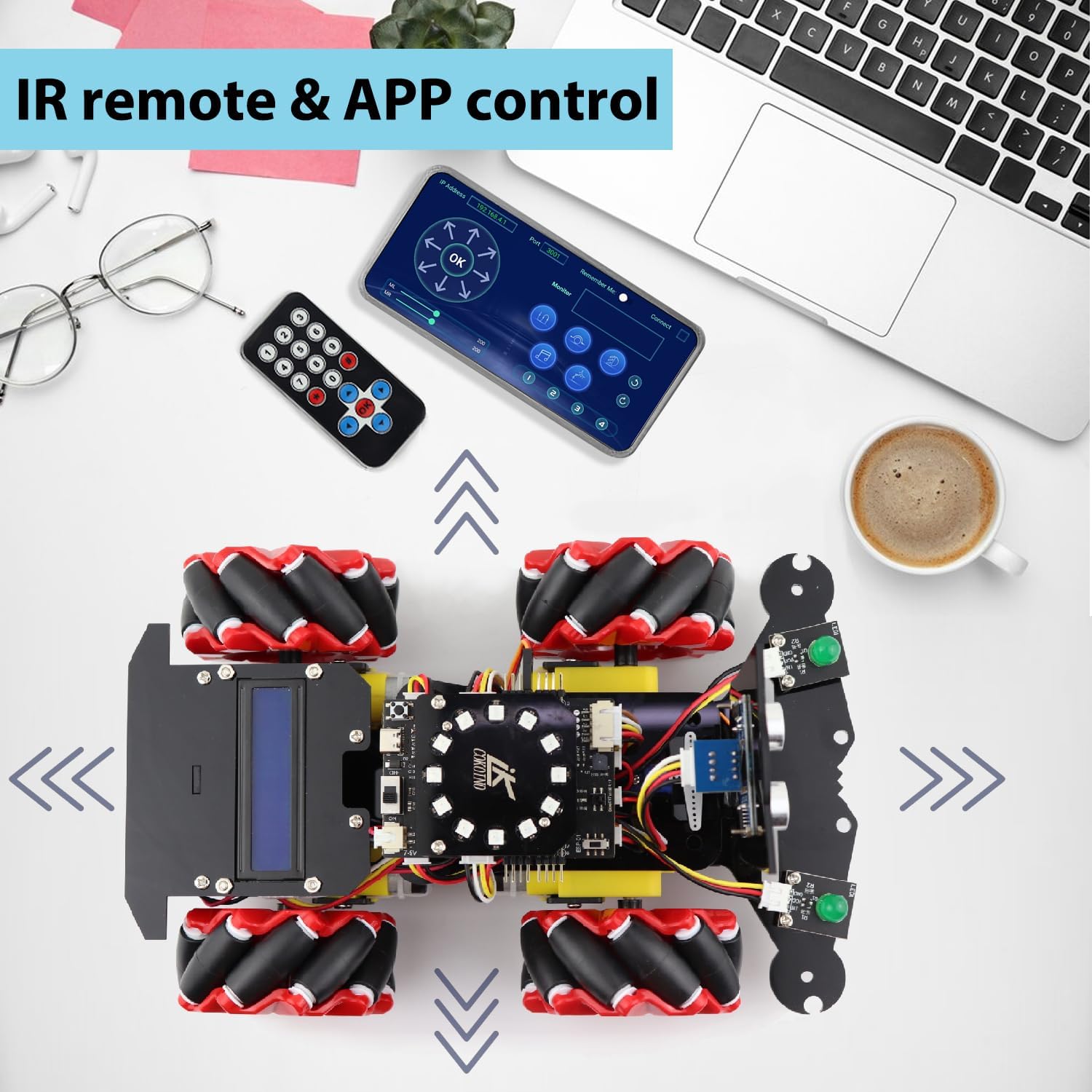

Build a Mecanum Wheels Robot which is capable of moving in any direction

This Ultimate Gift Bundle Includes Everything You Need To Build and Engineer

The brain of this robot platform is an control board for arduino uno which controls each wheel individually.

Four TT motors are attached to the robot platform and the Mecanum wheels are attached to the motor’s shafts.

There are many electronic components came with the kit including ultrasonic sensor and lcd display, two LED headlights and RGB LED ring mudule on the top, line-tracking sensor, a buzzer as the horn and so on!

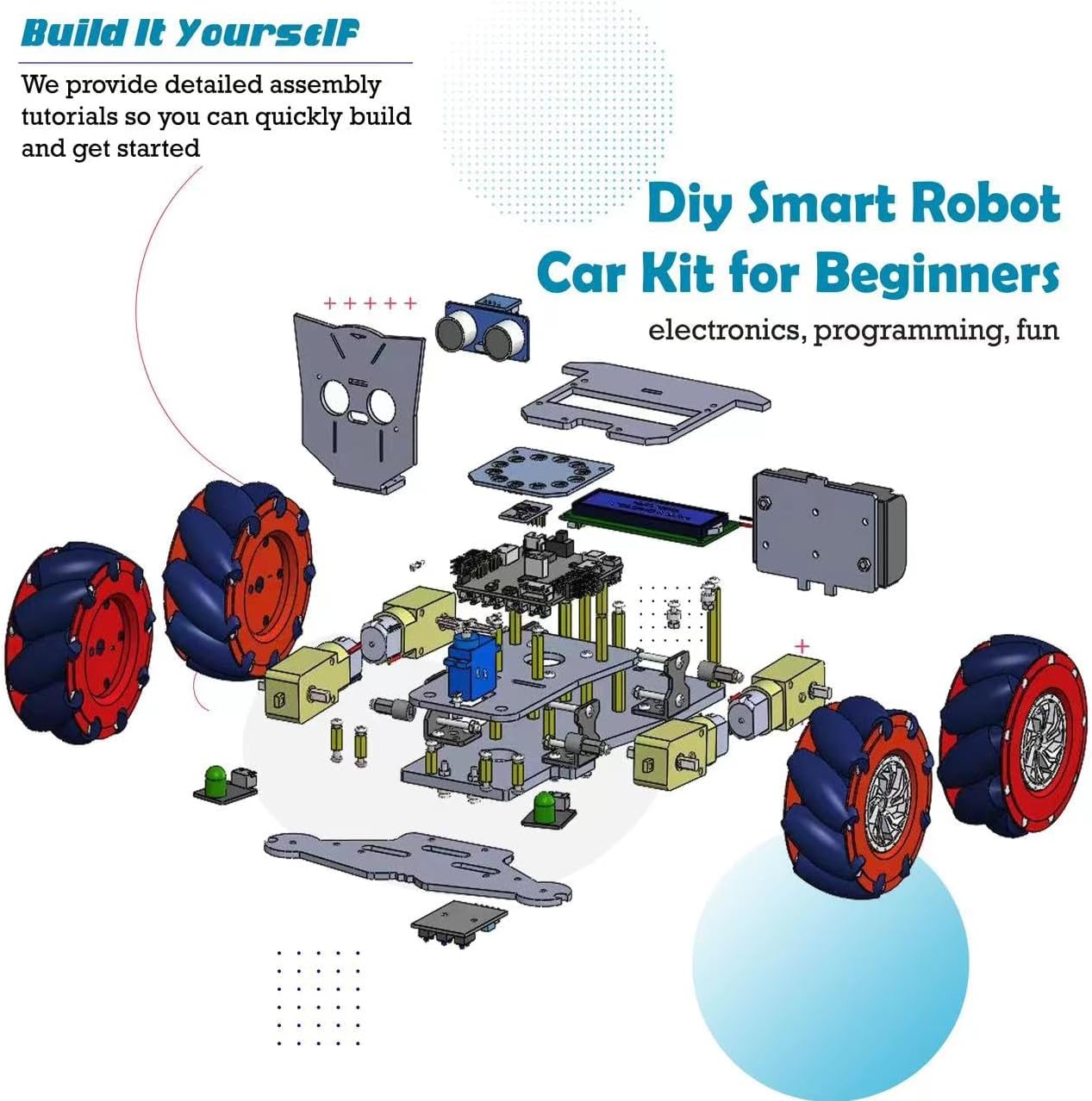

Comprehensive step-by-step guides are provided to make the assembly easy.

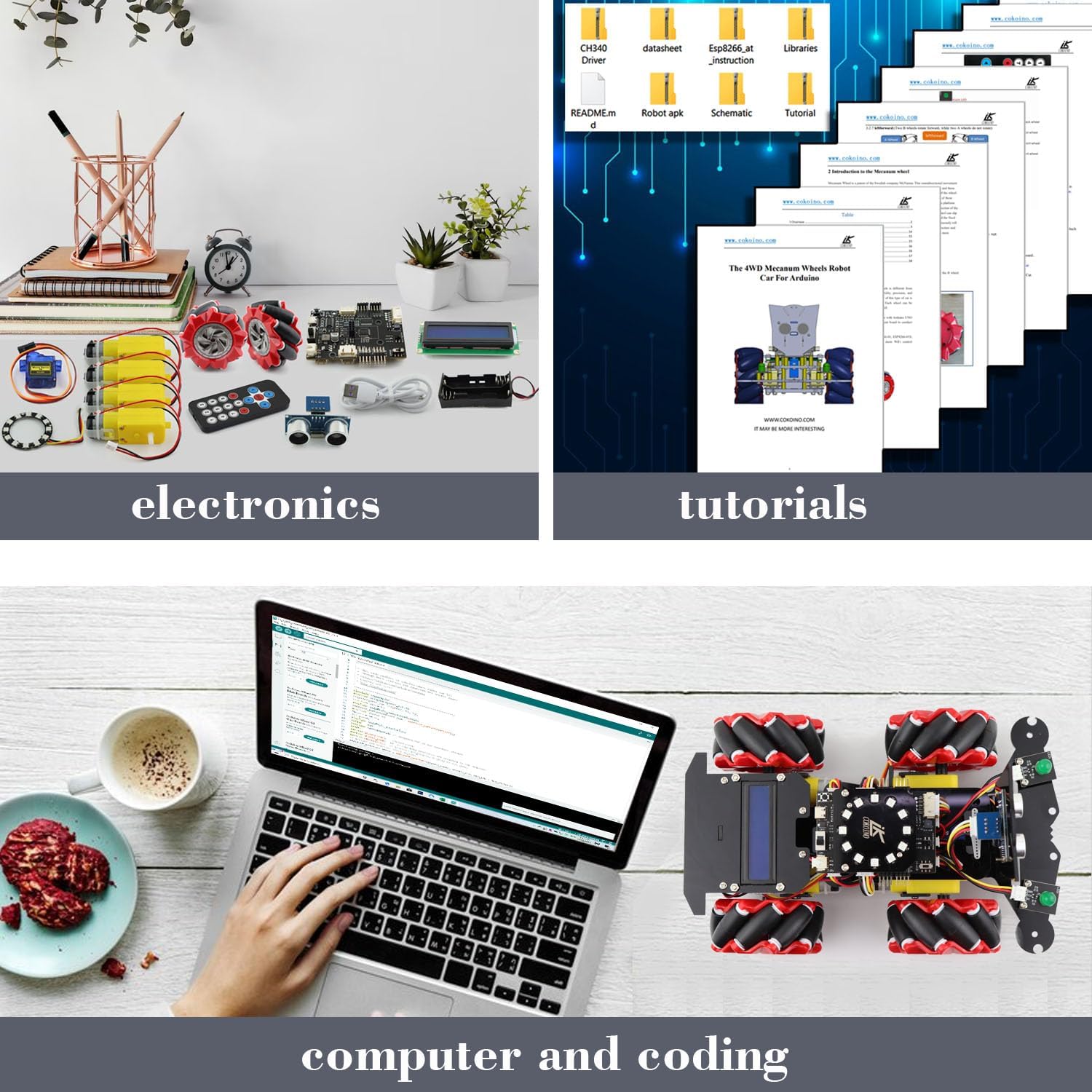

Parts provided in this project:

Control Board for Arduino UNO 1 Mecanum Wheel 4 SR-04 ultrasonic module 1 1602 LCD display (I2C) 1 Line following sensor 1 E-S-P-01 module 1 10mm green LED module 2 12 SW2812 light ring module 1 9g servo 1 battery case 1 TT motor 4 IR remote control 1 Chassis made of plastic 1 Wires, screws , tools, etc many

The Robot Control Board, as the main control board of this kit, is compatible with Arduino UNO R3 and more powerful than its functionality. You can use it as a development board to conduct more interesting experiments with other modules.

avoid obstacles

The principle of distance detection by ultrasonic ranging sensor: the method of detecting distance by ultrasonic is called echo detection method, that is, the ultrasonic transmitter emits ultrasonic waves in a certain direction, and the timer starts timing at the same time as the launch time. The ultrasonic waves propagate in the air and encounter obstacles on the way. When the object surface (object) is blocked, it will be reflected back immediately, and the ultrasonic receiver will immediately stop timing when the reflected ultrasonic wave is received.

lcd display

The LCD1602 Display Screen can display 2 lines of characters in 16 columns. It is capable of displaying numbers, letters, symbols, ASCII code and so on.

I2C LCD1602 Display Screen integrates an I2C interface, which connects the serial-input & parallel-output module to the LCD1602 Display Screen. This allows us to use only 4 lines to the operate the LCD1602.

green LDE headlights

An LED is a type of diode. All diodes only work if current is flowing in the correct direction and have two Poles. An LED will only work (light up) if the longer pin (+) of LED is connected to the positive output from a power source and the shorter pin is connected to the negative (-). Negative output is also referred to as Ground (GND). This type of component is known as “Polar” (think One-Way Street).

ws2812 led module

WS2812B is an intelligently controlled LED that integrates the control circuit and RGB chip in a package of 5050 components.The interior includes intelligent digital ports, data latches and signal amplification drive circuits. It also includes a precise internal oscillator and a voltage programmable constant current control part to effectively ensure that the light color of the pixels is highly consistent.

Ideal STEM Projects Gifts for Kids aged 15+, Teens, Adults

Rich learning resource allow you to learn programming from the simplest to more complex. You can make the robot to achieve function of distance tracking, obstacle avoidance, line following, light show, app control etc.

If you love robots, the best way to get close to them is to learn electronics and coding practical excercise. This 4wd smart robotics is the best and cheap way to start building your robotic project and actually see your robot come to life with your own code!
